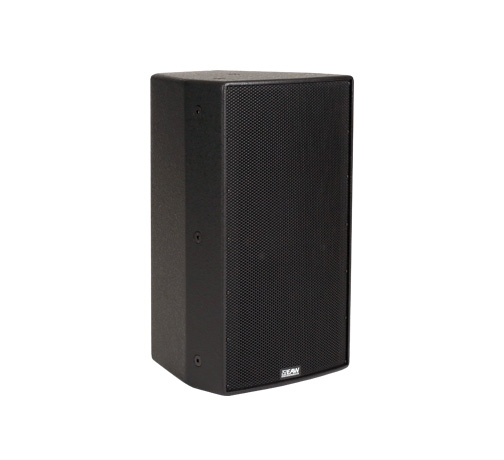

EAW MK8196i full range systeem.
Vraag offerte op voor EAW MK8196

Beschrijving

8″ woofer, 90 x 60 gr hoorn.

The MK8196i two-way loudspeaker system sets the new standard in installation performance by solving the chronic problems of compact two-way loudspeakers. Yet it’s size is actually smaller than many of the compact two-ways it outperforms.
The HF horn loading the 1-in exit/1.5-in voice coil compression driver is larger than most traditional compact two-way horns. This extends pattern control lower into the midrange than would otherwise be possible and allows the horn’s pattern to overlap the woofer’s pattern in the critical crossover area.

Advanced beamwidth matching crossover point selection transitions between the subsystems exactly where the HF horn’s 90° (h) x 60° (v) coverage pattern matches the woofer’s pattern. This eliminates the beamwidth mismatch that creates off-axis voids in the crossover area of traditional two-way systems.

The internal passive crossover/filter network uses complex, asymmetrical slopes to integrate the subsystems and goes beyond merely dividing the signal to perform critical equalization functions.

Download PDF EAW MK8196

Extra informatie

Gewicht 14.1 kg
Afmetingen 280 × 299 × 502 mm
Kleur

levertijd

Eenheid
