EAW VFR159i 2-way full range loudspeaker.
Vraag offerte op voor EAW VFR159i

Beschrijving

The new VFR “i” revision brings the VF concept more fully into the EAW product line. VFR “i” Series black versions provide side handles and a handle designed into the rear of the cabinet. An installation only white version comes without handles or a pole mount cup.

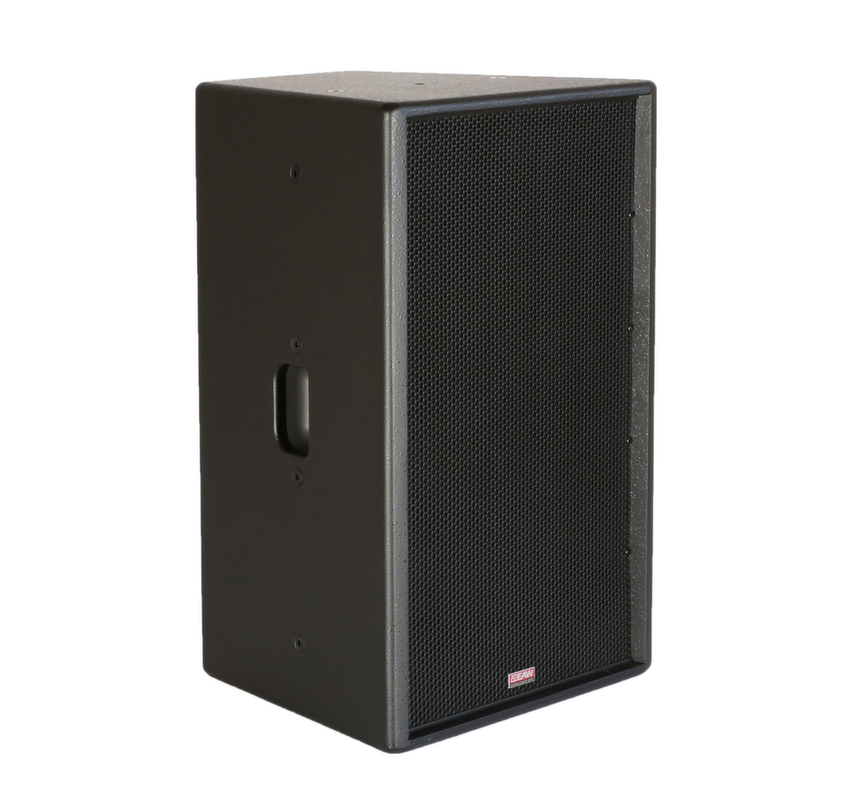

The VFR159i two-way, full range loudspeaker system includes a direct-radiating, vented, 15-in LF cone transducer and a 1-in exit / 1.75-in voice coil HF compression driver loaded with a large, square, user-rotatable 90×60 or 60×45 coverage pattern horn built on the classic MK Series horns. These horns deliver exceptional high frequency dispersion, and their square shape lets users “rotate the enclosure around the horn” to maintain directivity in a horizontal configuration. The standard horn is field replaceable with an optional 60×45 horn. This change incorporates a passive filter adjustment to maintain consistent acoustic response and smooth beamwidth throughout the crossover region.

Because VF Series full range systems (VFR/VFM) use HF sections similar to those developed for the MK Series, EAW engineers could employ the same revolutionary “beamwidth-matching” internal passive crossover/filter networks that set the MK Series apart from all other two-way systems. If powered by an EAW-specified amplifier or via a UX Series digital signal processor, the VFR159i can enjoy the benefits of EAW Focusing, a technology that eliminates the anomalies inherent in the time domain of any loudspeaker.

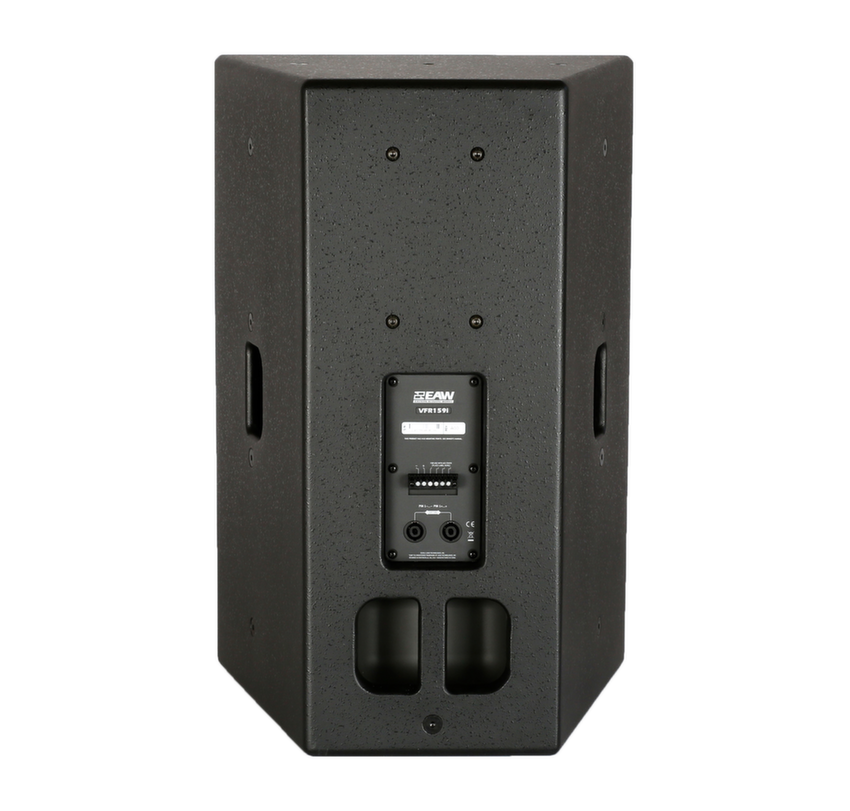

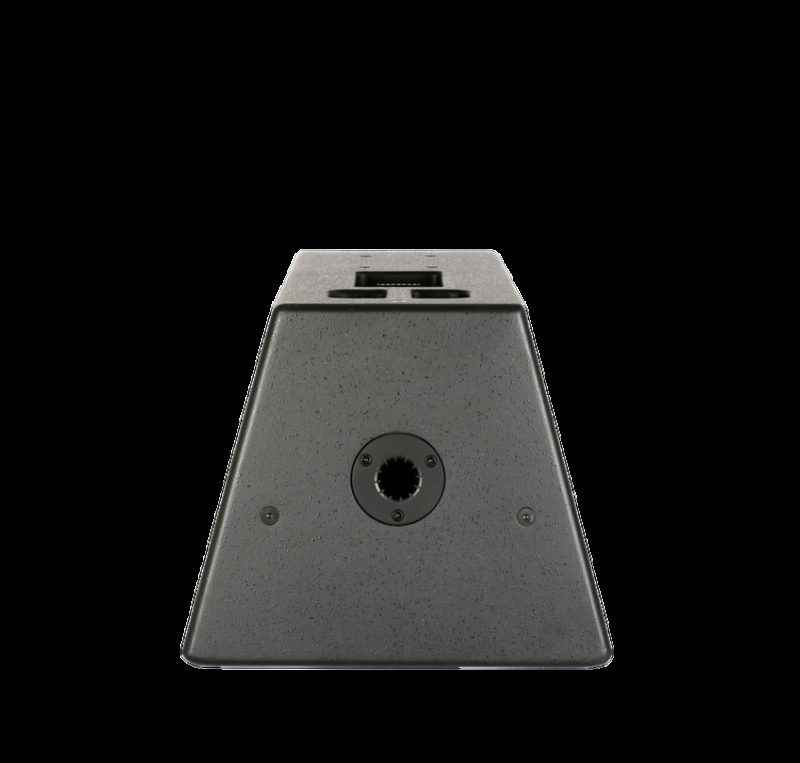

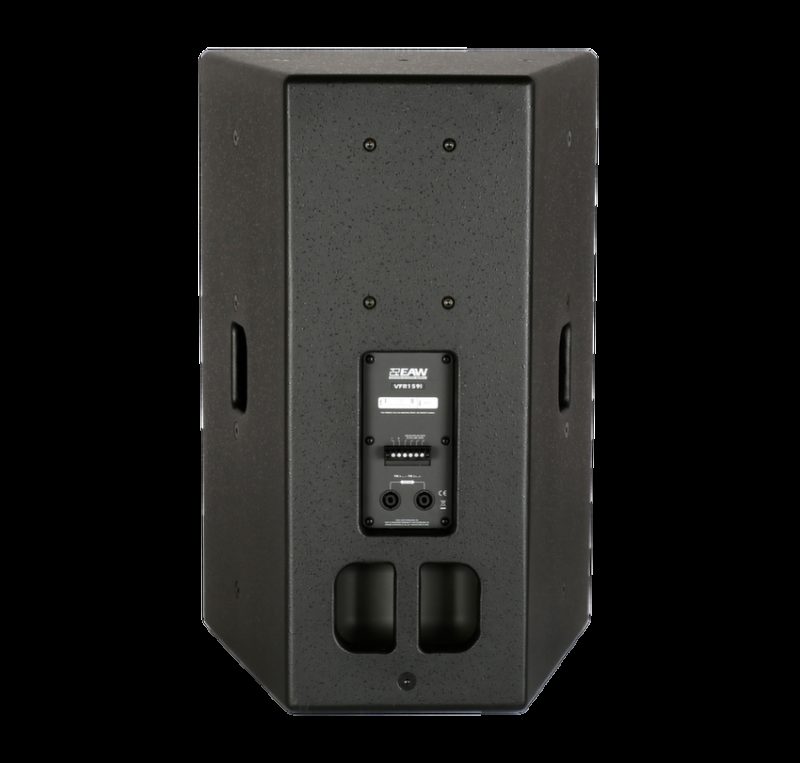

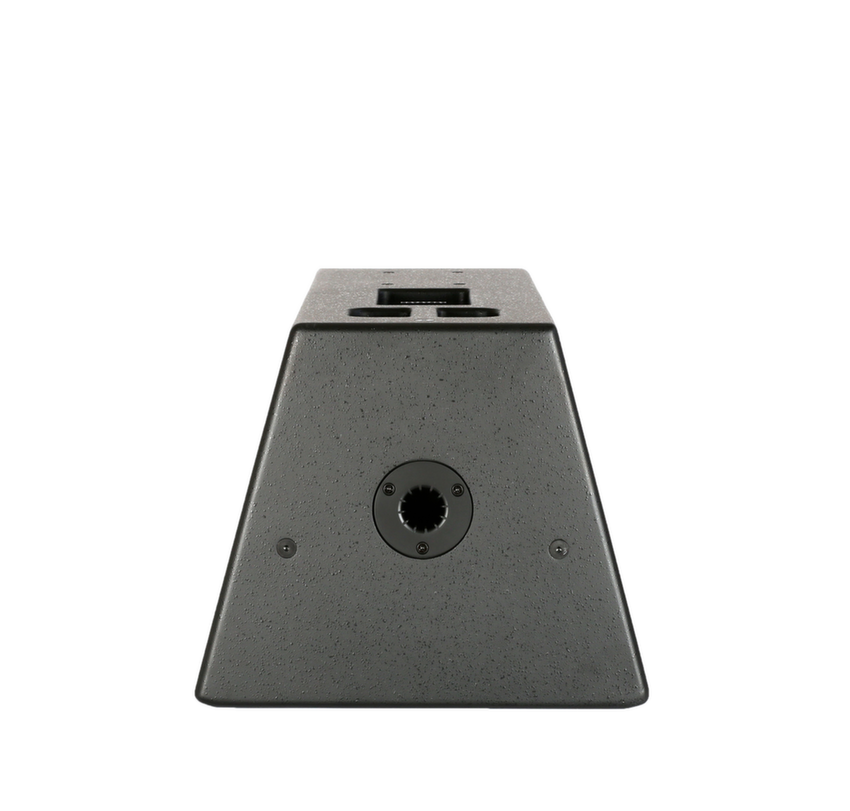

The VFR159i black version includes traditional portable features such as a pole-mount cup, parallel NL4 4-terminal connector, barrier strip connector, an optional transformer and handles that accept accessory covers for permanent installation. The white, installation-only versions omit handles and the pole-mount cup but include NL4 connector, barrier strip connector, an optional transformer, and multiple mounting points. The new design leaves the enclosure sides completely smooth and attractive. Optional rigging hardware is available for preconfigured arrays with VFS sub bass systems.

Download PDF EAW VFR159i

Extra informatie

Gewicht 27.2 kg
Afmetingen 464 × 511 × 720 mm
Kleur

levertijd

Eenheid
